ISO gecertificeerde matrijs volgens ISO 3167:2014 / ASTM D638 - 14

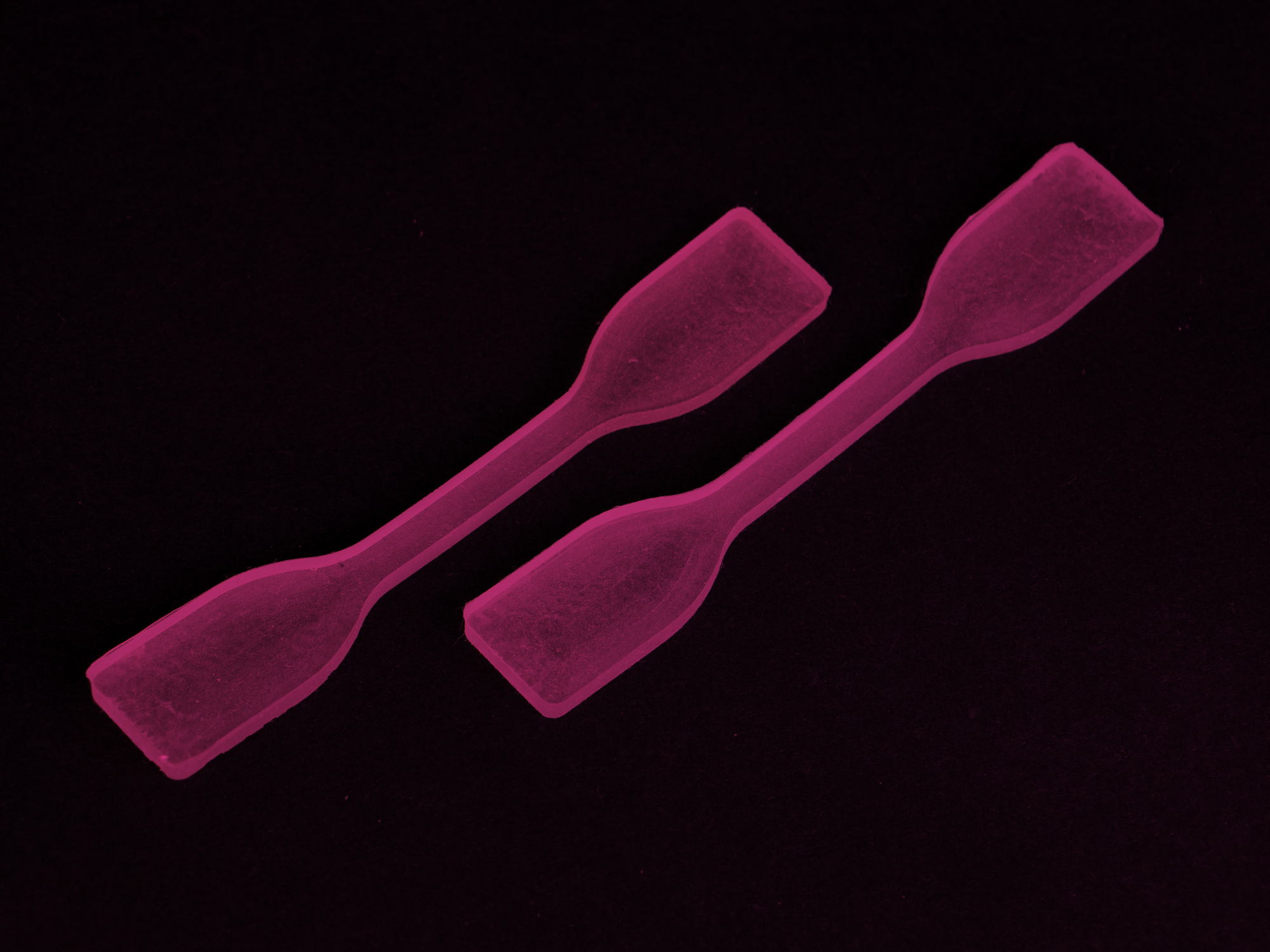

Productie van kunststof proefstukjes
test staafjes
Testing lab
Kunststoffen
Testing standard

ISO 3167:2014; ASTM D638 - 14

inserts

Principe

Met behulp van de gecertificeerde matrijs kunnen verschillende proefstaafjes aangemaakt worden.

Het modulair systeem zorgt voor een eenvoudige wisseling van de verschillende inserts.

moulded samples

Werkwijze

Proefstaven kunnen aangemaakt worden op basis van een datasheet of volgens specificaties van de klant.

Optioneel kunnen druk en temperatuur in de matrijs opgemeten worden.

Toepassingen

Injection moulding samples and corresponding tests

The inserts are multicavities, which means that for most of them 2 or 4 samples are injected per shot.

Insert ISO A: samples type 1A dumbbell

  • Tensile ISO527-2
  • Impact ISO179-1/2 (Charpy) or ISO180 (Izod) - centre part
  • Bending tests ISO 178 - middle part
  • HDT ISO75-2 - middle part
  • VST ISO306 - middle part
  • DMA analyses ISO6721-3/5 - middle part
  • Hardness ISO868 (Shore A/D) - minimal required thickness = 4mm!

Insert ISO A: samples type 1A weldline

  • Same as previous type but with weldline in middle of sample

Insert ISO 5A: sample type 5A dumbbell

  • Tensile ISO 527-2 5A- small tensile samples

Insert ISO B (80x10x4 equal to middle section ISO1A)

  • Impact ISO179-1/2 (Charpy) or ISO180 (Izod)
  • Bending tests ISO 178
  • HDT ISO75-2
  • VST ISO306
  • DMA analyses ISO6721-3/5
  • Hardness ISO868 (Shore A/D) - minimal required thickness = 4mm!

Insert ISO D1

  • Plates 60 x 60 x 1 mm

Insert ISO D4

  • Plates 60 x 60 x 4 mm

Insert ASTM D638

  • Dumbbell type ASTM D638 V

Insert UL94 (125 x 13 x 3 mm)

  • UL fire test

Insert Helix Flux (2 x 5 mm)

  • Spiral mould for rheological purposes

Insert fracture creep test (customized)

Insert flow edge test (customized)

Insert business card (customized – usable for laser marking afterwards)
